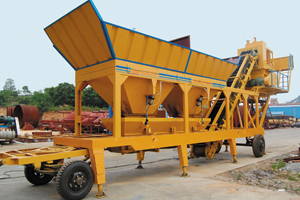

Mobile Concrete Batching Plant With the production requirements’ continuous increase, concrete batching plant investment also becomes one selection for some companies. Then mobile concrete batching plant is one better choice for investors. It is convenient to move mobile concrete batching plant.

Definition of Mobile Concrete Batching Plant
Mobile concrete batching plant
is designed and developed for users whose construction projects aim at short construction period, long construction line and frequent transition.
Mobile Concrete Batching Plant effectively organizes mixer, engineering vehicles, belt conveyor, batching plant and finishes all functions based on an unit of tailing. Mobile concrete batch plant is an organic whole to concentrate on collecting material, measuring, conveying, mixing, elevating, storing, etc., thus achieving automatically continuous production .

Features of Mobile Concrete Batching Plant
Mobile cement plant uses JS series concrete mixer, the shaft of which adopts new type of twin spiral to enhance the mixing efficiency.
Mobile concrete batching plant is featured by compact structure, small floor coverage, simple installation and high degree of automation.
The control room adopts sound-proof and heat-proof blockboard. It is bright and spacious. Working temperature of electrical components can be guaranteed, at the same time, operating comfort can also be greatly improved.


Mobile concrete batching plant can handle dry hardness, semi-dry hardness, and plastic concrete and meet different requirements of different construction sites.

Aggregate supplying system of Mobile concrete batching plant consists of hoppers and each hopper has two opening devices. Users can separate the hoppers as 2 to 4 according to batching requirements. The opening device is specially designed, so that the discharging is smooth and has no material jam.

Usages of Mobile Concrete Batching Plant
Mobile cement plant is featured by compact structure, accurate measurement, good quality and admirable moving function. So mobile concrete batch plant is popular applied in highway, bridge, harbor and hydroelectric engineering construction, etc.

Pioneer Machinery Company supplies mobile concrete batch plant for sale with good quality at best price.

Parameters of Mobile Concrete Batching Plant
Model HZSY25 HZSY35 HZSY50 HZSY75
Production(m3/h) 25 35 50 75
Mixer Type JS500 JS750 JS1000 JS1500
Power(kw) 1*18.5 1*30 2*18.5 2*30
Discharging(m3) 0.5 0.75 1 1.5
Aggregate size(mm) ≤60 ≤60 ≤60 ≤60
Batching system Capacity(m3) 4 4 6 7
Quantity 4 4 4 4
Weighing accuracy Aggregate(kg) 1000±2% 1500±2% 2000±2% 3000±2%
Cement(kg) 300±1% 500±1% 600±1% 800±1%
Water(kg) 200±1% 300±1% 300±1% 400±1%
Additive(kg) 20±1% 20±1% 20±1% 20±1%
